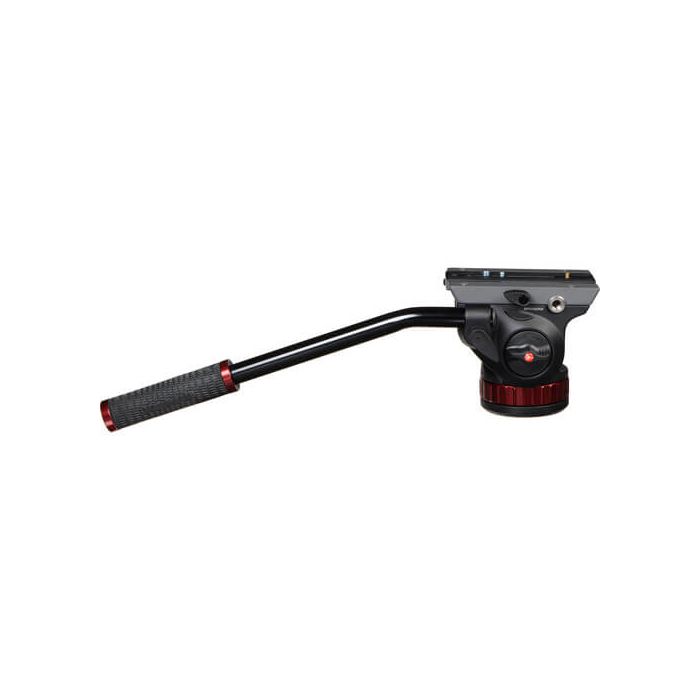

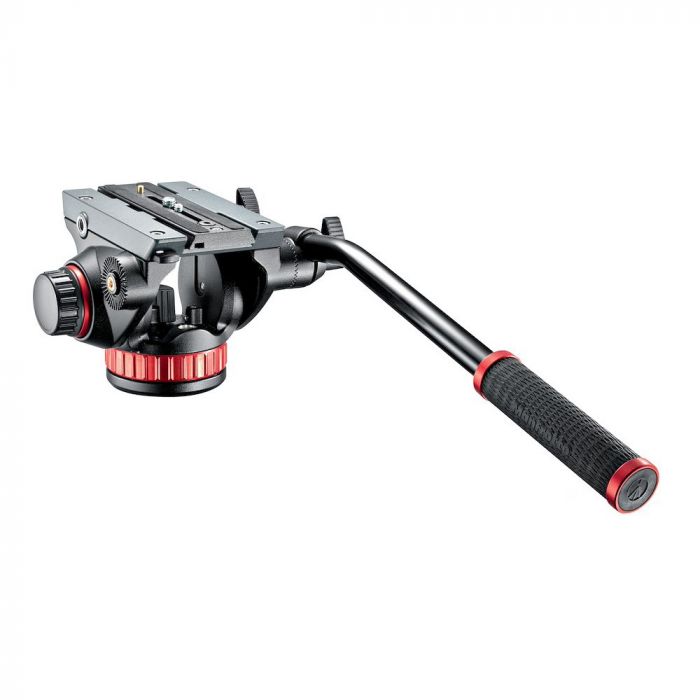

Manfrotto 502AH Pro Video Head with Flat Base
- Fixed Counterbalance system
- Sliding plate for the fastest camera connection and set up
- Flat base for multiple support combinations
Overview
The Manfrotto 502 Fluid Video Head with flat base features variable fluid drag system for pan and tilt movements that's cleverly incorporated into the design.It's ideal for the latest camcorder and HDSLR cameras supplied with external accessories. It has a maximum capacity of 7kg and features a Ø75mm half ball connection to ensure compatibility with most equipment today.
This video head also has a fixed counterbalance system of 4 Kg Last but not least, 3/8'' Easy Link attachment points allow an external monitor or other accessory equipment to be fitted.
Specifications
Weight
1.691 kg
Safety Payload UNI/PdR 105:2021
10 kg
Counterbalance System
Fixed
Counterbalance Weight
4 kg
Base Diameter
75 mm
Material
Aluminium
Bubble Spirit Level (No.)
1
Center of gravity
55 mm
Safety Payload Weight
6 kg
Powered by (batteries)
0
Certifications
None
Top Attachment
1/4″ screw, 3/8″ screw
Colour
Black
Easy Link
Yes
Front Tilt
-80° / +90°
Ball Flat
Flat
Head Type
Video/Fluid Head
Maximum Working Temperature
60 °C
Minimum Working Temperature
-20 °C
Pan Bar Included
Yes
Pan Drag
continuously adjustable from 0 to max level
Panoramic Rotation
360 °
Plate Type
504PLONG
Quick Release
Yes
Tilt Drag
continuously adjustable from 0 to max level
Working Height
13 cm
Accessory Compatibility
MVAPANBARM; MVAPANBARL; 502HLV; 509HLV; 520BALL, 520BALLSH
