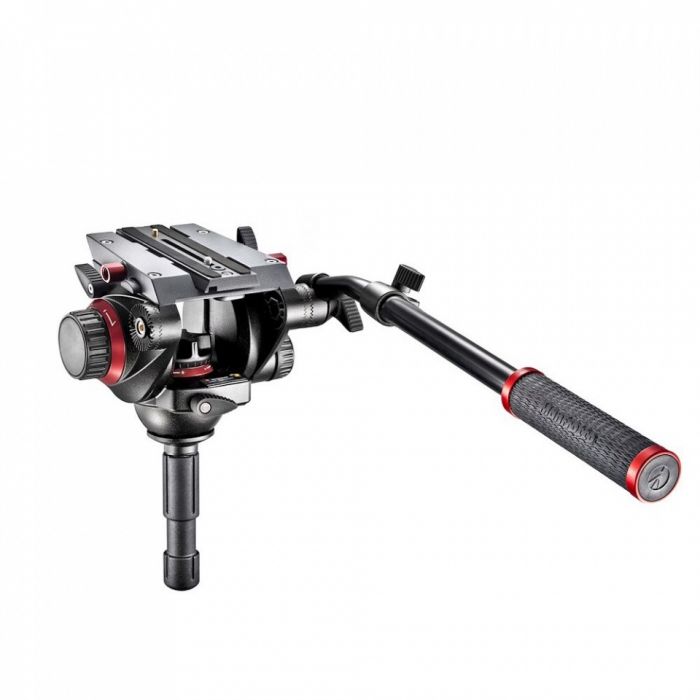

Manfrotto 504HD Fluid Video Head with 75 mm Half Ball

In stock
SKU
504HD
Special Price $349.88 Regular Price $360.00

- 4 step Counterbalance system

- Inbuilt Ø75mm levelling half ball

- Illuminated levelling bubble for easy setup

Overview

A perfect balance of design and performance, the Manfrotto 504 fluid video head with incorporated 75mm half ball puts you in control. This gives you the stability, strength and speed to suit any condition.

The head is made from durable aluminium. When you’re setting up a shot, the Manfrotto Head offers unrivalled stability thanks to variable fluid drag system in both pan and tilt movement, which allows smooth shooting and a 4-steps counterbalance system up to 7,5 Kg at 55mm C.O.G. The head has a maximum payload of 12 Kg.

Easy link 3/8'' thread connections allows an external monitor or other accessory equipment to be fitted. Plus, levelling is simple thanks to the 75mm diameter half ball and backlit levelling bubble.

Specifications


Weight
2.77 kg

Counterbalance System
Variable Steps

Counterbalance Weight
0, 2.5, 5, 7.5 kg

Material
Aluminium

Bubble Spirit Level (No.)
1

Center of gravity
55 mm

Safety Payload Weight
12 kg

Powered by (batteries)
Lithium

Certifications
WEEE; RoHS

Top Attachment
1/4″ screw, 3/8″ screw

Colour
Black

Easy Link
Yes

Front Tilt
-60° / +90°

Ball Flat
75 Ball

Head Type
Video/Fluid Head

Maximum Working Temperature
60 °C

Minimum Working Temperature
-20 °C

Pan Bar Included
Yes

Pan Drag
continuously adjustable from 0 to max level

Panoramic Rotation
360 °

Plate Type
504PLONG

Quick Release
Yes

Tilt Drag
continuously adjustable from 0 to max level

Working Height
15.5 cm

Accessory Compatibility
MVAPANBARM; MVAPANBARL;502HLV;509HLV
