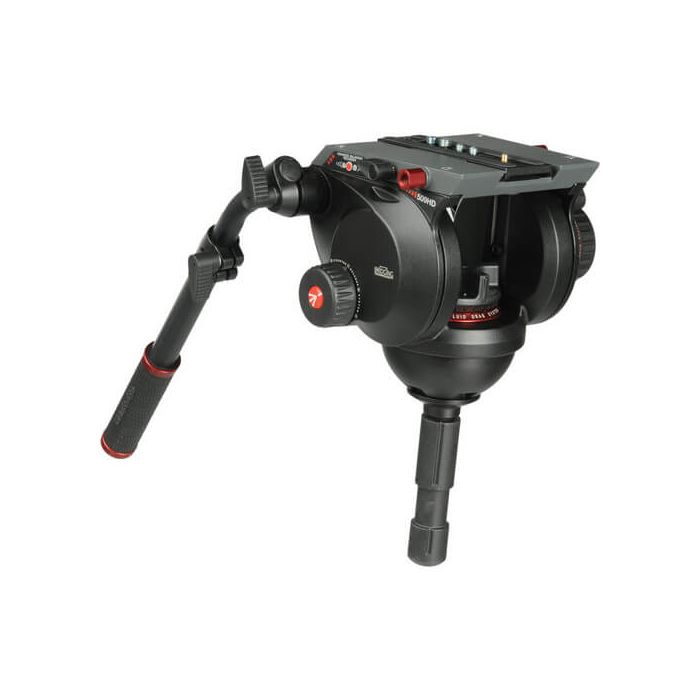

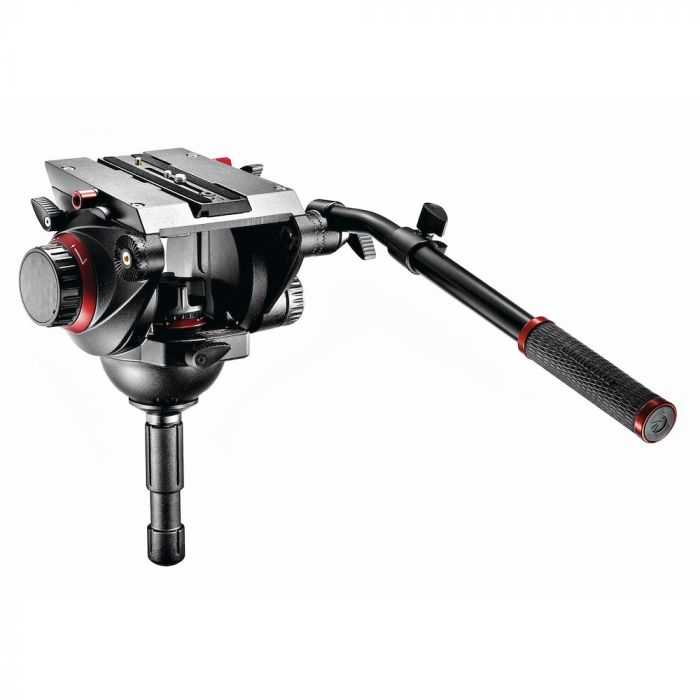

Manfrotto 509HD Professional Video Head with 100mm Half Ball
- 4 step counterbalance system
- Sliding plate for fast camera connection and set up
- Inbuilt Ø100mm levelling half ball
Overview
A perfect balance of design and performance, the Manfrotto 509 fluid video head with incorporated 100mm half ball puts you in control. Stability, strength and speed to suit any condition.The head is made from durable aluminium. When you’re setting up a shot, the Manfrotto head offers unrivalled stability thanks to variable fluid drag system in both pan and tilt movement which allows smooth shooting, and a 4-step counterbalance system up to 12,8Kg at 55mm C.O.G or 8,5 kg at 125mm C.O.G. The head has a maximum payload of 13.5kg at 55mm C.O.G or 9Kg at 125mm C.O.G.
Easy link 3/8'' thread connections allow an external monitor or other accessory equipment to be fitted.
The 509 features the ABR (Advanced Balancing Recorder) for precision when fixing equipment, ensuring a perfect balancing position, saving time and making this operation much more efficient, accurate and fast.
Levelling is simple thanks to the 100mm diameter half ball and backlit levelling bubble.
Specifications
Weight
3.9 kg
Safety Payload UNI/PdR 105:2021
13.5 kg
Counterbalance Weight
8.5 kg
Material
Aluminium
Bubble Spirit Level (No.)
1
Center of gravity
125 mm
Powered by (batteries)
Lithium
Certifications
WEEE; RoHS
Top Attachment
1/4″ screw, 3/8″ screw
Colour
Black
Easy Link
Yes
Front Tilt
-60° / +90°
Ball Flat
100 Ball
Head Type
Video/Fluid Head
Maximum Working Temperature
60 °C
Minimum Working Temperature
-20 °C
Pan Bar Included
Yes
Pan Drag
continuously adjustable from 0 to max level
Panoramic Rotation
360 °
Plate Type
509PLONG
Quick Release
Yes
Tilt Drag
continuously adjustable from 0 to max level
Working Height
18 cm
Accessory Compatibility
502HLV; 509HLV
