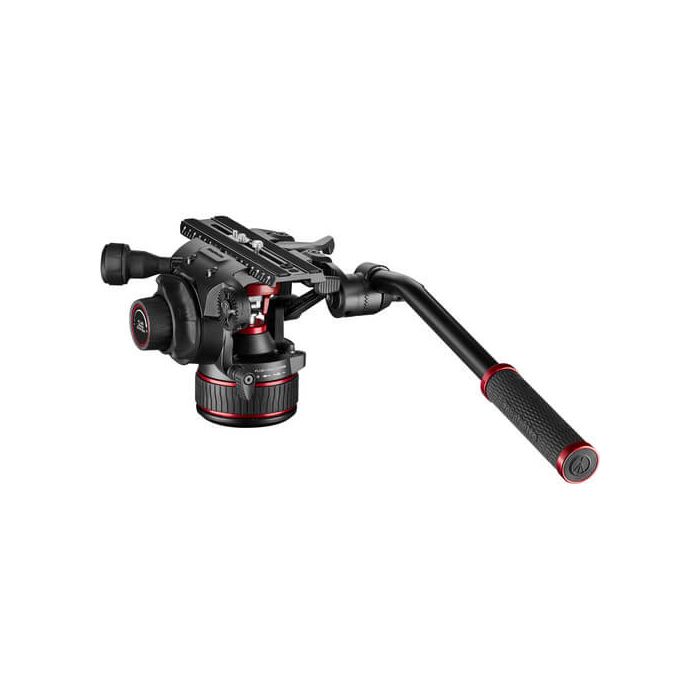

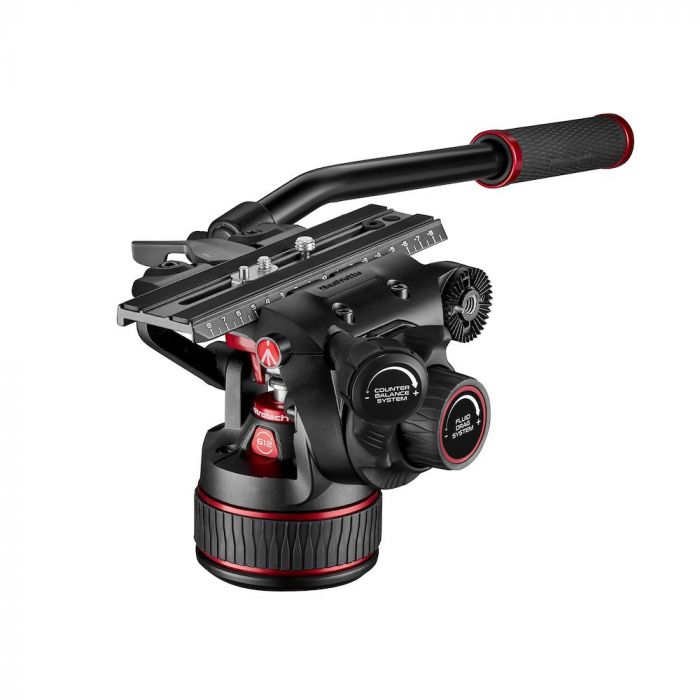

Manfrotto 612 Nitrotech Fluid Video Head

In stock
SKU
MVH612AH
Special Price $508.73 Regular Price $512.00

- Nitrotech Fluid Video Head With Continuous CBS

- Fluid video head with continuous counterbalance system (4-12 Kg)

- Variable continuous fluid pan & tilt drag system

Overview

The NITROTECH 612 fluid video head features continuous counterbalance system that enables precise control of a camera and accessories from 4 up to 12 Kg at 55mm center of gravity. No matter the camera gear weight you are using you can have constant control despite the tilt degrees you will select. Camera operation will be much easier and effort free!

The variable continuous fluid drag system is powered by a brand new fluid technology that with Its formula sets a new level of performance in the Manfrotto range boosting the smoothest and judder-free pan and tilt movements.

The head also features a 3/8” Easy Link equipped with an anti-rotation systems both to accommodate Manfrotto arms equipped with an anti-rotation system or arms equipped with ARRI locating pins in order to enable an external monitor or other accessories to be fitted securely. The sliding plate attachment side-lock mechanism allows safe, quick and easy camera attachment. The NITROTECH head has a flat base mount with a standard 3/8” thread that is highly versatile for different support combinations (tripod, slider, jib or crane).

Specifications


Weight
2.27 kg

Safety Payload UNI/PdR 105:2021
18 kg

Counterbalance System
Variable Continuous

Counterbalance Weight
4 → 12 kg

Base Diameter
75 mm

Material
Aluminium

Bubble Spirit Level (No.)
1

Center of gravity
55 mm

Powered by (batteries)
Lithium

Certifications
WEEE; RoHS

Top Attachment
1/4″ screw, 3/8″ screw

Colour
Black

Easy Link
Yes

Front Tilt
-70° / +90°

Ball Flat
Flat

Head Type
Video/Fluid Head

Maximum Working Temperature
50 °C

Minimum Working Temperature
-20 °C

Pan Bar Included
Yes

Pan Drag
continuously adjustable from 0 to max level

Panoramic Rotation
360 °

Plate Type
504PLONGRL

Quick Release
Yes

Tilt Drag
continuously adjustable from 0 to max level

Working Height
15 cm

Accessory Compatibility
MVAPANBARM; MVAPANBARL
