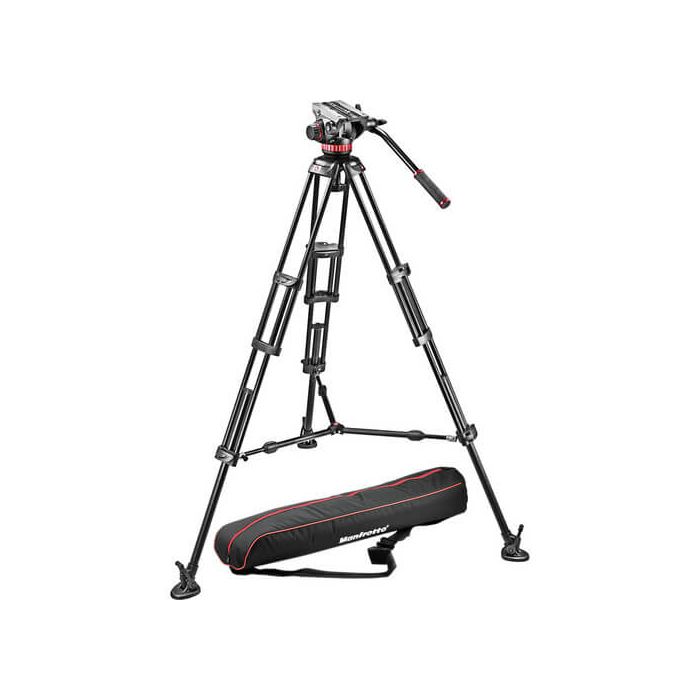

Manfrotto MVH502A Fluid Head and 546B Tripod System with Carrying Bag
- Fixed Counterbalance system
- Inbuilt Ø60mm levelling half ball
- Easy link for external accessories
Overview
The Manfrotto 502 Fluid Video Head features variable fluid drag system for pan and tilt movements that's cleverly incorporated into the design. It's ideal for the latest camcorder and HDSLR cameras supplied with external accessories. It has a maximum capacity of 7kg and features a Ø75mm half ball connection to ensure compatibility with most equipment today. This video head also has a fixed counterbalance system of 4 Kgs. Last but not least, 3/8'' Easy Link attachment points allow an external monitor or other accessory equipment to be fitted.
Specifications
Weight: 1.92 kg
Counterbalance System: Fixed
Counterbalance Weight: 4 kg
Material: Aluminum
Bubble Spirit Level (No.): 1
Center of gravity: 55 mm
Safety Payload Weight: 7 kg
Powered by (batteries): 0
Certifications: None
Top Attachment: 1/4″ screw, 3/8″ screw attachmenttype
Color: Black
Easy Link: Yes
Front Tilt: -80° / +90° tiltrange
Ball Flat: 75 Ball
Head Type: Video/Fluid Head
Maximum Working Temperature: 60 °C
Minimum Working Temperature: -20 °C
Pan Bar Included: Yes
Pan Drag: continuously adjustable from 0 to max level
Panoramic Rotation: 360 °
Plate Type: 504PLONG
Quick Release: Yes
Tilt Drag: continuously adjustable from 0 to max level
Working Height: 15 cm
Accessory Compatibility: MVAPANBARM; MVAPANBARL; 502HLV; 509HLV
