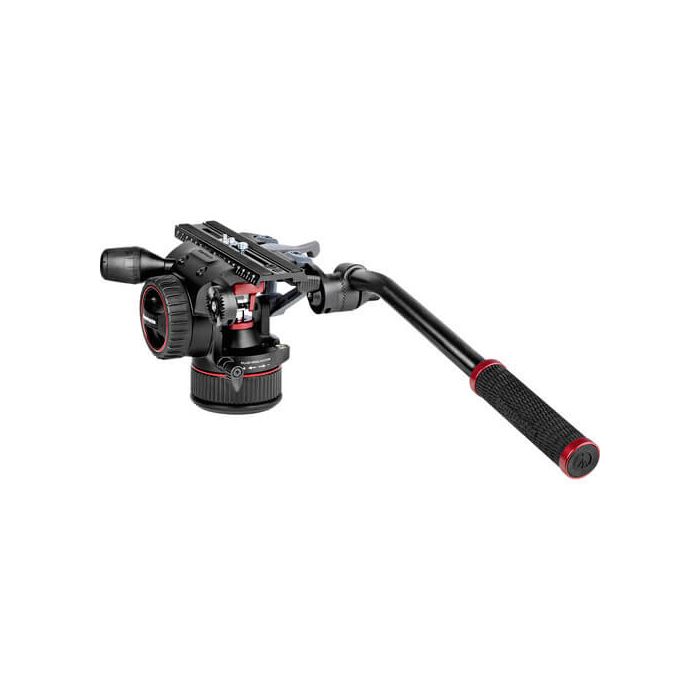

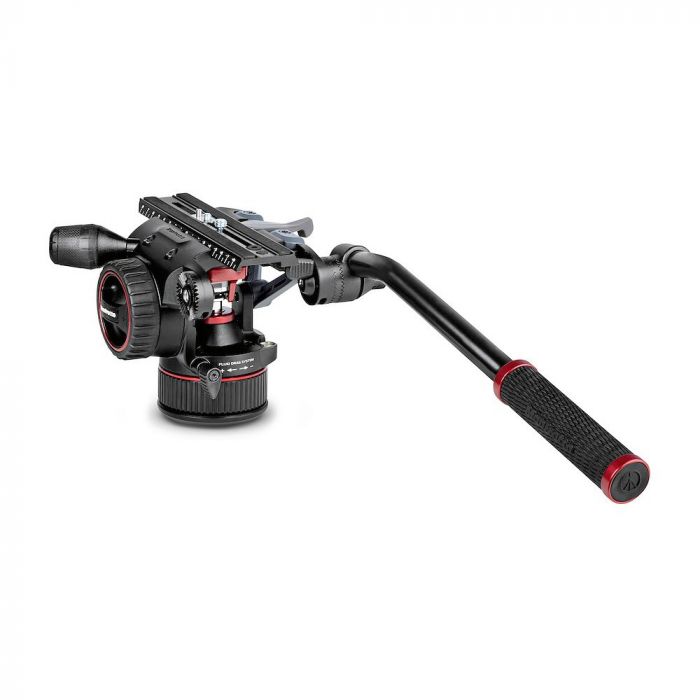

Manfrotto Nitrotech N12 Video Head
- Fluid video head with continuous counterbalance system (4-12 Kg)
- 3/8” easy link connector for accessories, with anti-rotation
- Flat base mount ideal for various applications
Overview
The NITROTECH N12 fluid video head features state-of-the-art technology consisting in a Nitrogen piston mechanism that allows continuous counterbalance system that enables precise control of a camera and accessories from 4 to 12 Kg @ 55mm C.O.G. . The variable fluidity function on both pan and tilt allows smooth, judder-free movement. It also features a 3/8” Easy Link equipped with an anti-rotation function that enables an external monitor or other accessories to be fitted. The sliding plate attachment side-lock mechanism allows safe, quick and easy camera attachment. The NITROTECH head has a flat base mount with a standard 3/8” thread that is highly versatile for different support combinations (tripod, slider, jib or crane).
Specifications
Weight: 2.25 kg
Counterbalance System: Variable Continuous
Counterbalance Weight: 4 → 12 kg
Material: Aluminum
Bubble Spirit Level (No.): 1
Center of gravity: 55 mm
Safety Payload Weight: 12 kg
Powered by (batteries): Lithium
Certifications: WEEE; RoHS
Top Attachment: 1/4″ screw, 3/8″ screw attachmenttype
Color: Black
Easy Link: Yes
Front Tilt: -70° / +90° tiltrange
Ball Flat: Flat
Head Type: Video/Fluid Head
Maximum Working Temperature: 50 °C
Minimum Working Temperature: -15 °C
Pan Bar Included: Yes
Pan Drag: continuously adjustable from 0 to max level
Panoramic Rotation: 360 °
Plate Type: 504PLONGRL
Quick Release: Yes
Tilt Drag: continuously adjustable from 0 to max level
Working Height: 14.8 cm
Accessory Compatibility: MVAPANBARM; MVAPANBARL
