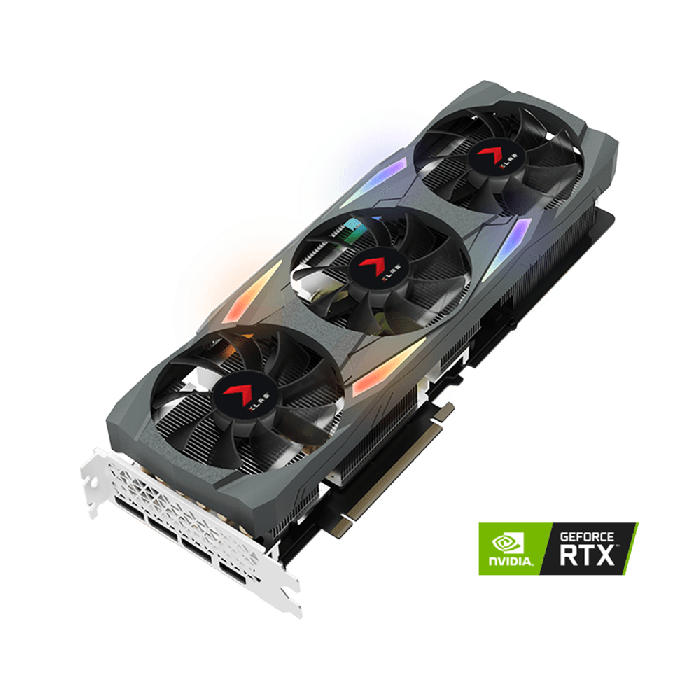

PNY GeForce RTX 3090 24GB XLR8 Gaming UPRISING EPIC-X RGB Triple Fan Edition VCG309024TFXMPB
- Memory Size: 24GB GDDR6X
- Memory Speed (Gbps): 19.5
- Outputs : DisplayPort 1.4 (x3), HDMI 2.1
Overview
The GeForce RTX™ 3090 is a big ferocious GPU (BFGPU) with TITAN class performance. It’s powered by Ampere—NVIDIA’s 2nd gen RTX architecture—doubling down on ray tracing and AI performance with enhanced RT Cores, Tensor Cores, and new streaming multiprocessors. Plus, it features a staggering 24 GB of G6X memory, all to deliver the ultimate gaming experience.The all-new NVIDIA Ampere architecture features new 2nd generation Ray Tracing Cores and 3rd generation Tensor Cores with greater throughput. The NVIDIA Ampere streaming multiprocessors are the building blocks for the world’s fastest, most efficient GPU for gamers and creators.
GeForce RTX 30 Series GPUs are powered by NVIDIA’s 2nd gen RTX architecture, delivering the ultimate performance, ray-traced graphics, and AI acceleration for gamers and creators.
KEY FEATURES
• 2nd Gen Ray Tracing Cores• 3rd Gen Tensor Cores
• PCI Express® Gen 4
• Microsoft DirectX® 12 Ultimate
• GDDR6X Graphics Memory
• NVIDIA DLSS
• NVIDIA® GeForce Experience™
• NVIDIA G-SYNC®
• NVIDIA GPU Boost™
• NVIDIA NVLink™ (SLI-Ready)
• Game Ready Drivers
• Vulkan RT API, OpenGL 4.6
• HDCP 2.3
• VR Ready
• Supports 4k 120Hz HDR, 8K 60Hz HDR and Variable Refresh Rate as specified in HDMI® 2.1
MINIMUM SYSTEM REQUIREMENTS
• PCI Express-compliant motherboard with one triple-width x16 graphics slot• Two 8-pin supplementary power connectors
• 750 W or greater system power supply
• Microsoft Windows® 10 (November 2018 or later), Windows 7 64-bit, Linux 64-bit
• Internet connection1
Specifications
PNY Part Number
VCG309024TFXMPB
UPC Code
751492639536
CUDA Cores
10496
Clock Speed
1395 MHz
Boost Speed
1695 MHz
Memory Speed (Gbps)
19.5
Memory Size
24GB GDDR6X
Memory Interface
384-bit
Memory Bandwidth (GB/sec)
936
TDP
350 W
NVLink
Supported
Outputs
DisplayPort 1.4 (x3), HDMI® 2.1
Multi-Screen
4
Resolution
7680 × 4320 @60Hz (Digital)
Power Input
Two 8-Pin
Bus Type
PCI-Express 4.0 ×16
Card Dimensions
12.48" x 4.53" x 2.36"; 3-Slot
Box Dimensions
7.48" x 14.96" x 3.54"
