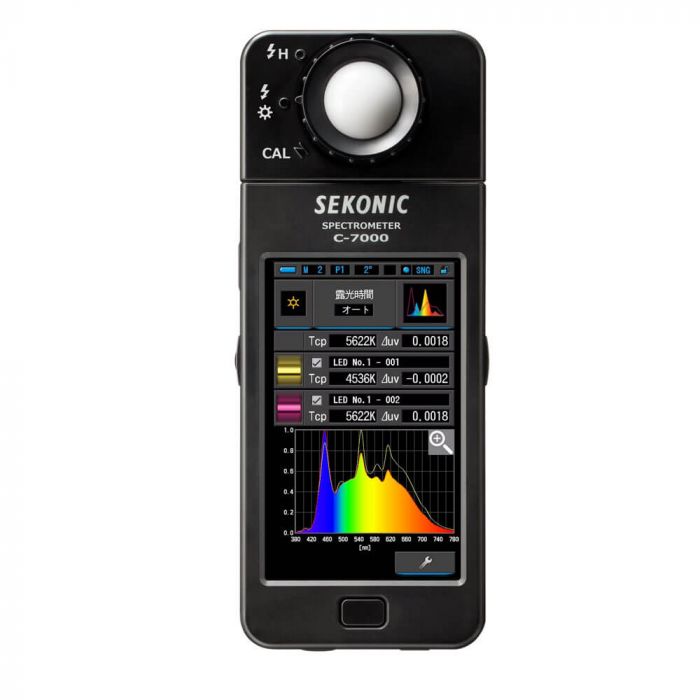

Sekonic C-7000 Spectrometer
Key Features: - * with the latest firmware - Measures LED, HMI, Fluorescent, Tungsten, Natural Light and Flash, from 380 to 780nm - Wide measurement range of Color Temperature (1,563 to 100,000K) and illuminance (1 to 200,000lx in ambient light, 20 to 20,500lx・s in flash light) - Conforms to Class A of JIS C 1609-1: 2006, and DIN 5032 Part 7 Class C as Illuminance meter class - Text Mode with more measurement for Industrial use such as Tcp, ⊿uv, XYZ, λd, λp, Pe - Spectrum Mode / Spectrum Comparison Mode - PPFD (Photosynthetic Photon Flux Density) Measurement - Expanded Color Rendering Properties (CRI/CRI Comparison, SSI, TLCI, TLMF, TM-30-18) * - CIE1931 (CIE1964) Chromaticity Coodinates and CIE1931 (CIE1964) Comparison Mode - CIE1976 Chromaticity Coodinates and CIE1976 Comparison Mode - 2°or 10° field of view is selectable - Single / Continuous measurement * - Exposure time (Shutter speed) is selectable - Up to 999 measurements can be stored in memory - User-friendly design: 270 degrees swivel head, dark calibration without a cap, large 4.3” color touch panel LCD and Customize function - C-7000 Utility offers easy setting, updating firmware of the meter, and outputting the various graphics and csv data - 1nm / 5nm increment spectrum output in CSV format by Utility - SDK (Software Development Kit) for remote control is available
The C-7000 Spectrometer is a portable handheld spectrometer, designed especially for industrial use. Utilizing Sekonic’s CMOS linear image sensor design and large touch-screen color display, the C-7000 can measure and accurately describe LED, HMI, fluorescent, as well as natural light and electronic flash. The C-7000’s Utility software displays memorized data in several ways and outputs spectral data in 1nm/5nm (nanometer) increments in CSV format. The C-7000 is an important measuring tool for quality control in lamp manufacturing, medical facilities, educational / office safety and health standards, agricultural lighting / design and many more industrial uses.
